前言

grafana配置完成后，经常在mysql的数据库内读取数据。有时候采用变量的形式，通过一下方法设置变量。

添加变量

DropCounts

SELECT 'DropCounts' AS __text, ROUND((${__to}+1000-${__from})/6000000) AS __value FROM  report  limit 1

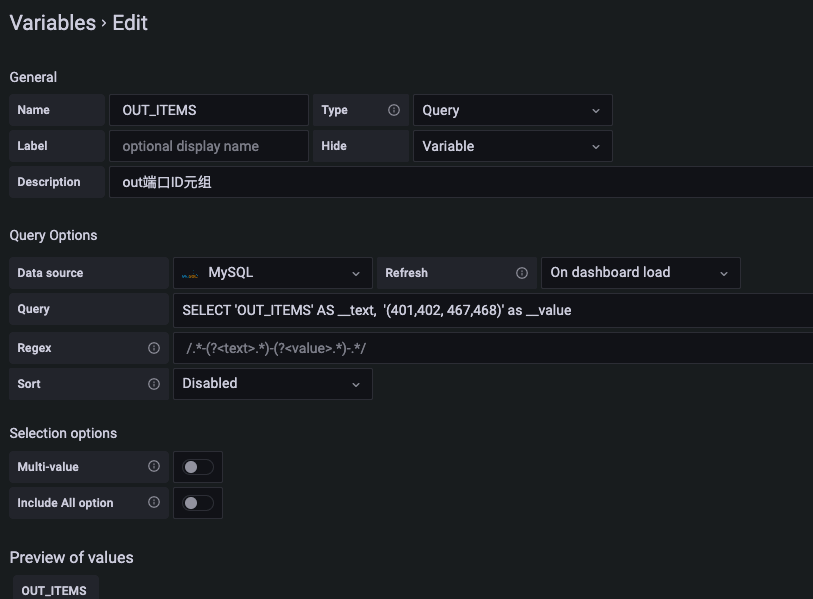

OUT_ITEMS

SELECT 'OUT_ITEMS' AS __text,  '(401,402, 467,468)' as __value

调用变量

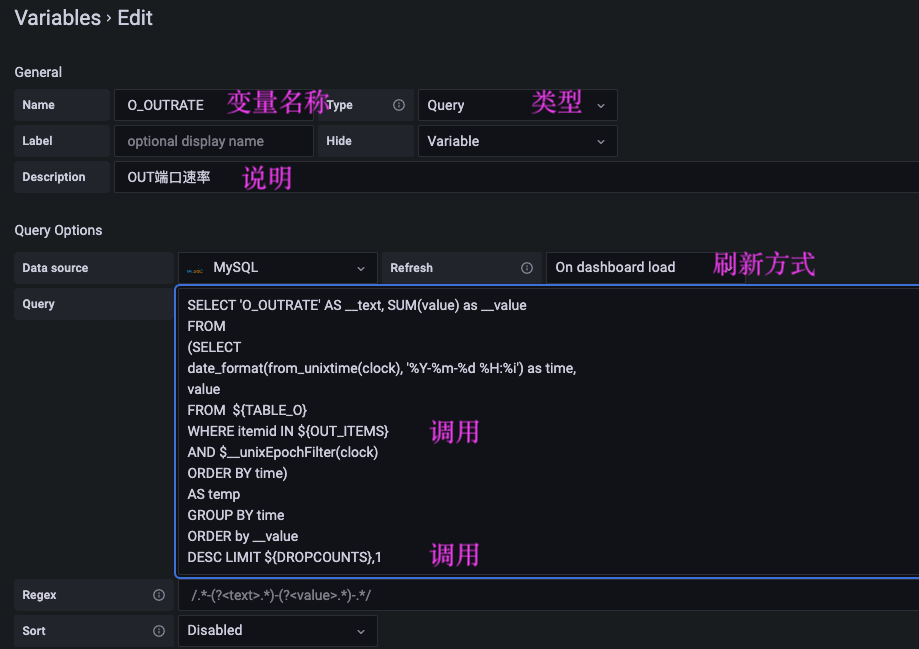

变量调用变量

SELECT 'O_OUTRATE' AS __text, SUM(value) as __value
FROM
(SELECT
  date_format(from_unixtime(clock), '%Y-%m-%d %H:%i') as time, value
FROM  history
WHERE itemid IN ${OUT_ITEMS}
AND $__unixEpochFilter(clock)
ORDER BY time
  )
AS temp
GROUP BY time
ORDER by __value
DESC LIMIT ${DROPCOUNTS},1

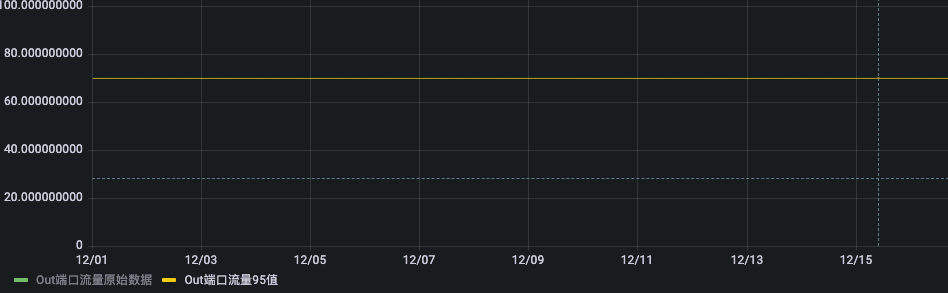

Time series 调用

SELECT
    unix_timestamp(time) as time_sec,
    ${O_OUTRATE} as value,
    'Out端口流量95值' as metric
FROM
(SELECT  date_format(from_unixtime(clock), '%Y-%m-%d %H:%i') as time
FROM  history
WHERE itemid IN ${OUT_ITEMS}
AND   $__unixEpochFilter(clock)
ORDER BY  time)
AS temp
GROUP BY time;
