前言

前面写过如何部署基于docker的grafana做数据可视化展示，因为常用数据库是mysql,所以数据源以mysql来制作。再使用过程中，有了新的需求。继续补充面版制作方法。

docker下运行grafana和grafana Image Renderer

制作面板

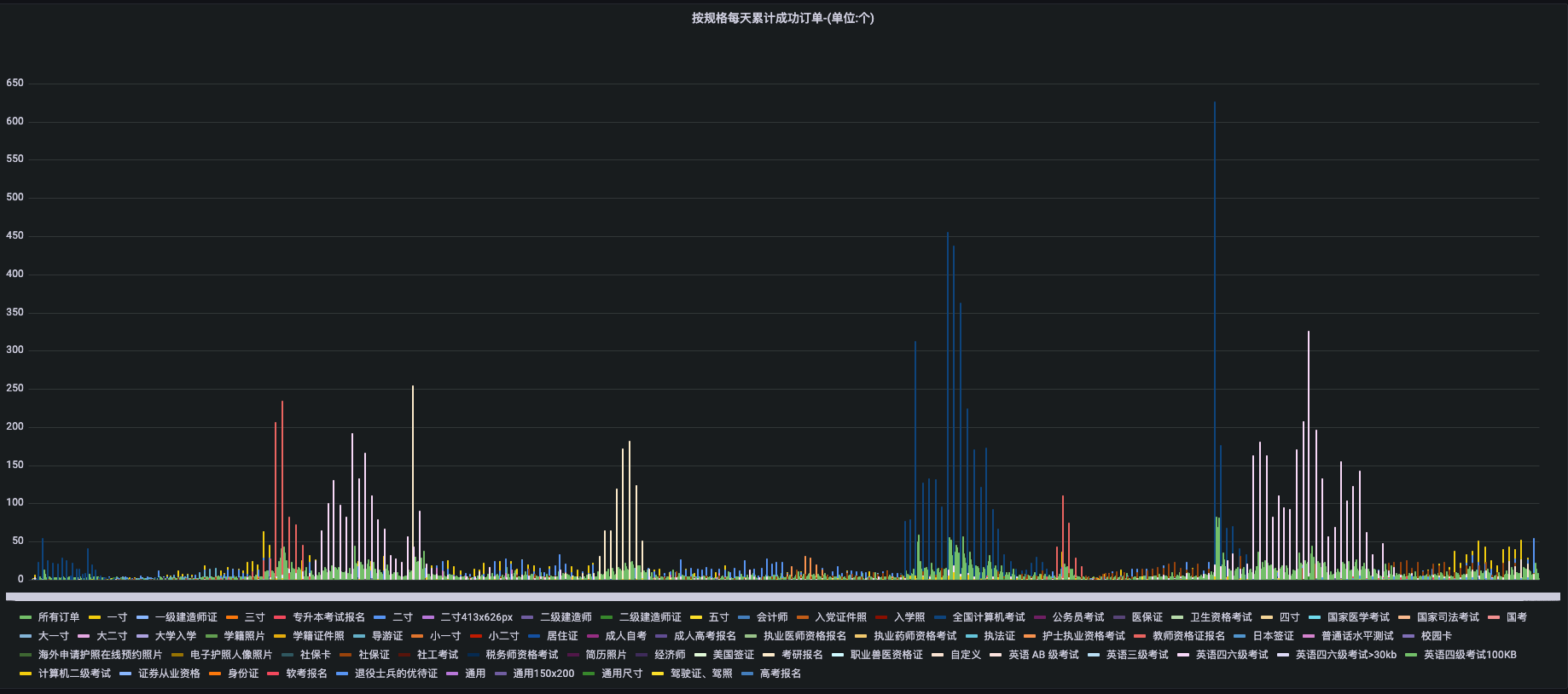

按规格统计计成功订单数

SELECT
    unix_timestamp(time) as time_sec,
    count(format_name) as value,
    format_name as metric
FROM (
    select
      date_format(b.create_time, '%Y-%m-%d') as time,
      substring_index(substring_index(c.format_name, '(', 1), '（', 1) as format_name
  from
    order_record b
  join
    (select '10000' as format_id, '自定义' as format_name  union all select format_id,format_name from photo_format ) c
  on
    b.format_id = c.format_id
  where
    $__timeFilter(b.create_time)
  and
    b.order_status = 10
)
AS temp
GROUP BY time, format_name
order by time, format_name desc
;

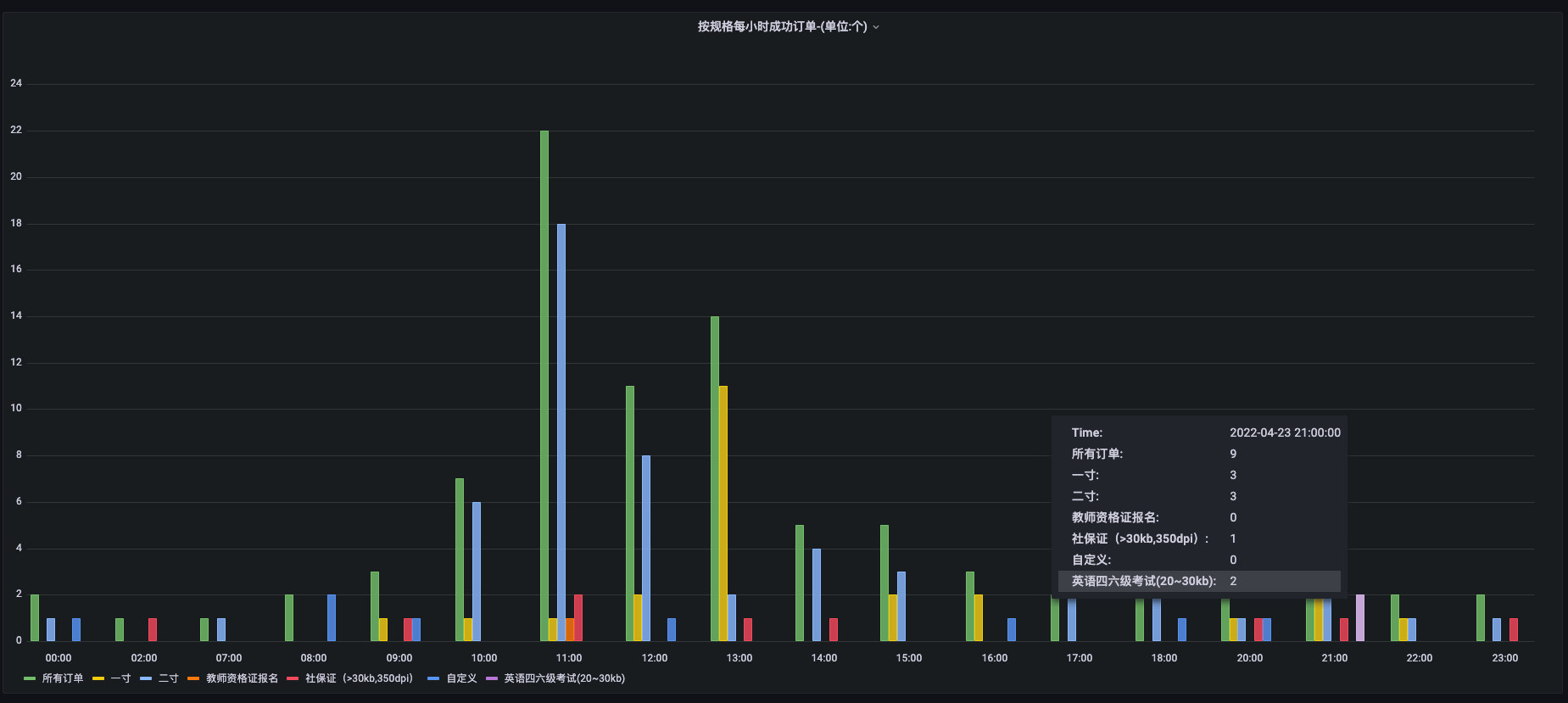

SELECT
    unix_timestamp(time) as time_sec,
    count(format_name) as value,
    format_name as metric
FROM (
    select
      date_format(b.create_time, '%Y-%m-%d %H') as time,
      c.format_name as format_name
  from
    order_record b
  join
    (select '10000' as format_id, '自定义' as format_name  union all select format_id,format_name from photo_format ) c
  on
    b.format_id = c.format_id
  where
    $__timeFilter(b.create_time)
  and
    b.order_status = 10
)
AS temp
GROUP BY time, format_name
order by time, format_name desc
;
